Description
Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

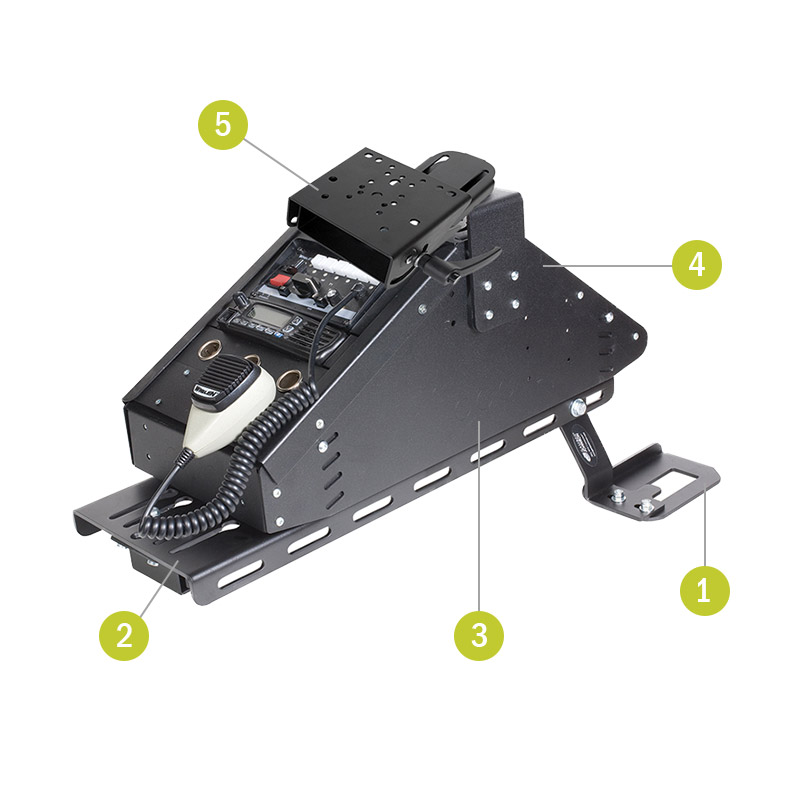

Vehicle Kit:
Chevrolet Impala Police Package Only (2006-2016)
Console System. Must order as is. There are no substitutions.
1. Leg Kit (Item No. 7160-0121)
Drilling is required for the rear leg only, the front legs attach to the passenger side seat studs.
2. 23” Top Plate (Item No. 7160-0086)
Top plate allows console box to be off set towards the passenger for added space.
3. Low Profile Ergonomic Console Box (Item No. 7160-0237)
The Low Profile Ergonomic Console Box can be mounted towards the dash, creating added space for other mounting equipment or easier passenger side exit. Ergonomic design makes it easier to access radios and siren controls. Console box comes with standard faceplates and filler panels (full faceplates must be ordered separately).
4. Computer Mounting Bracket (Item No. MCS-COMBRKT)
Computer Mounting Bracket allows the computer to be mounted directly to the console box, keeping the computer low in the vehicle and out of the air bag zone.
5. Motion Attachment (Item No. 7160-0500)
Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9″ to 13″ from center pole and locks automatically in the retracted 9” position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2×4, NEC or AMPS hole patterns.
Gamber-Johnson offers a variety of accessories for the console box including LED lights, mic clips, cigarette adapter kits and power distribution blocks. (These are not included in the Vehicle Kits, must order separately)
