Description
Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

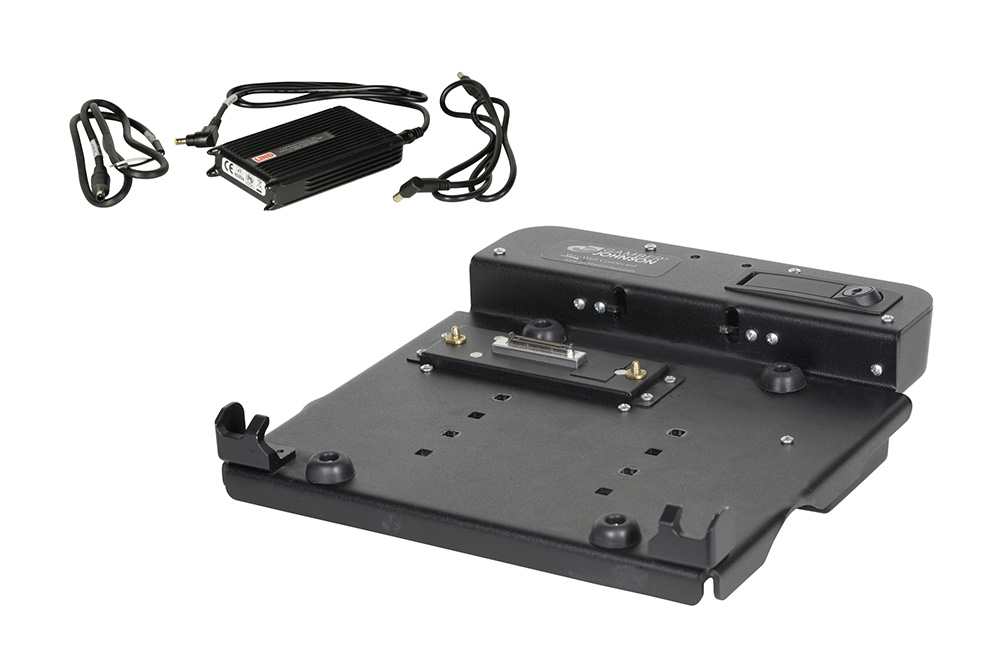

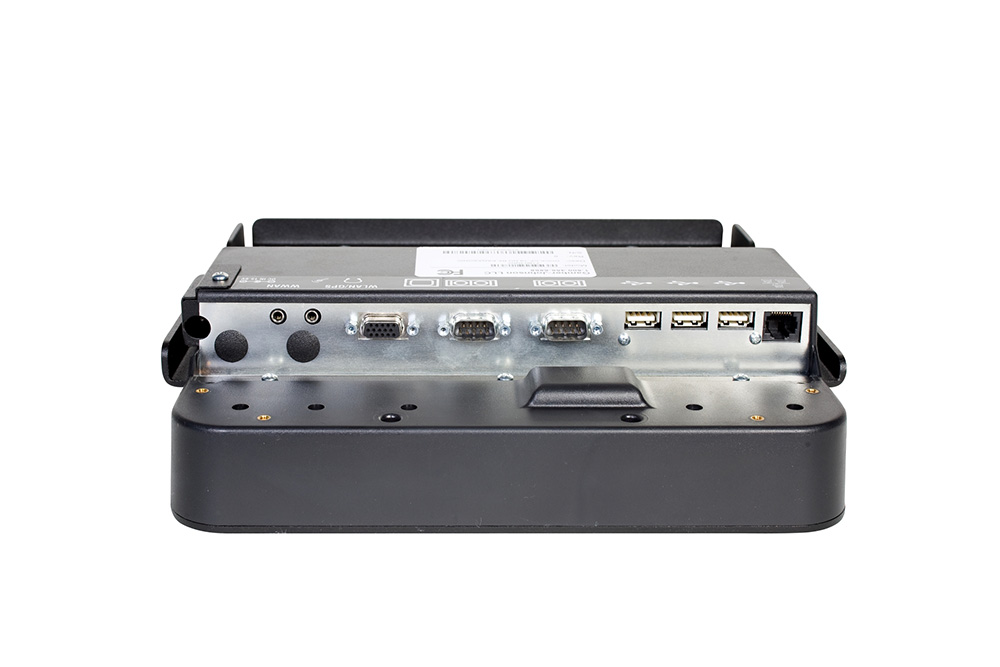

Gamber Johnson Docking Kit for Panasonic Toughbook CF-19
This Gamber Johnson dock is built from the ground up to accommodate the rugged nature of the Panasonic Toughbook CF-19 and is Toughbook Certified by Panasonic. This docking kit comes with an external power supply to be able to charge the docked CF-19 Toughbook. With port replication, this dock is specifically designed for a non pass-through CF-19 Toughbook.
N/A
4.15 lbs.
3.04″ H x 11.10″ W x 11.67″ D
- Designed using MIL-STD-810F test procedures
- Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as Toughbook Certified.
- Design works with Toughbook 19 MK4/MK5/MK6 computers only. The CF-19 MK4/MK5/MK6 Toughbook computer will be identified with a letter “R” or higher in the model number (i.e. CF-19R…).
- Can be positioned both vertically (Tablet PC) or horizontal (Notebook PC)
- Push button latching mechanism draws computer down for docking connection
- Internal/protected circuit board protects against dirt and dust
- Brass locating pins for precise computer placement
- Front clips provide computer guidance
- Floating docking connector for reliable docking connection
- Side LED indicator light, shows when the dock has power
- Rounded edges to enhance personal safety
- Bundled with external Lind Auto Adapter (Item No. 11798)
- Can be used with any Motion Attachment
- Cut out on each side of docking station to allow unrestricted access to adjust the Motion Attachment
- Aluminum structure for reduced overall weight
- Rugged construction for long-term durability
- Black powdercoat finish for maximum corrosion resistance
- 3 year limited warranty
Panasonic recommends that the CF19 computers should not be “hot docked” into any docking station.
