Gamber Johnson Mounting and Docking Equipment

Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station.  Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile.  A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime.  The Rugged Store offers many mounting and docking solutions from some of the top manufacturers.  Gamber Johnson creates mounting and docking components for Toughbooks and other computers.  Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution.  The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

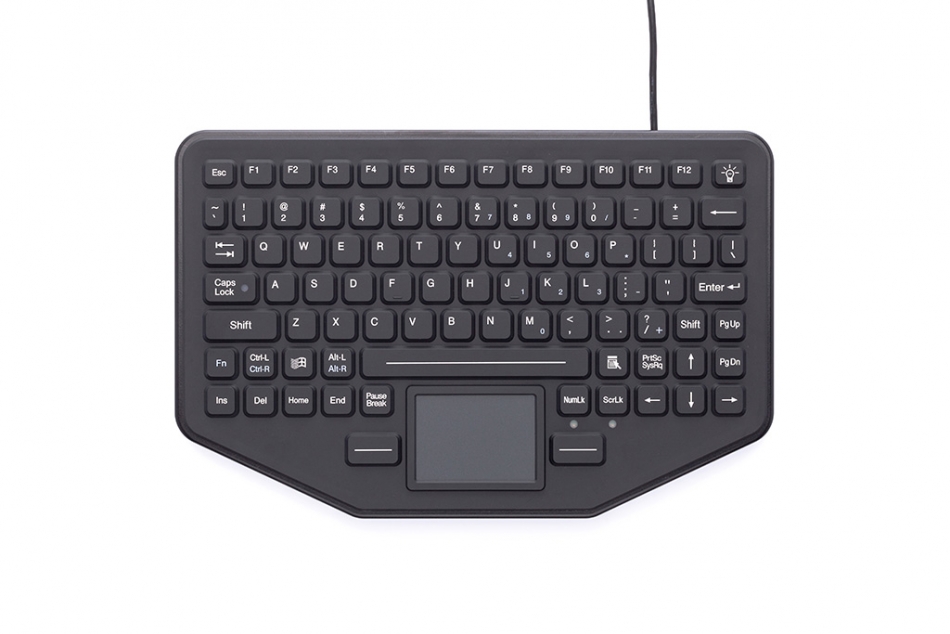

Gamber Johnson iKey SkinnyBoard™ Mobile Keyboard with Touchpad Measures only 0.5″ Deep 7300-0033

iKey Product Code: SB-87-TP The SkinnyBoard™ SB-87-TP is iKey’s thinnest keyboard to date, measuring only half an inch deep. Its sealed, streamlined case and silicone rubber keys meet IP65 standards, making it fully resistant to spills, cleaning procedures and the elements. Built for convenience and versatility in mobile computing applications, the SB-87-TP features an integrated touchpad, eliminating the need for an external pointing device. In addition, its red LED backlighting is ideal for nighttime or ambient-light use.

Features
12 Function Keys
Fully Sealed, IP65 Case
Integrated Touchpad
Silicone Rubber
Red LED Backlit Keys
Compatible with all Windows and Mac OS
USB Connectivity
Ultra-Thin Design

Certificates & Testing
NEMA 4X UL60950, FCC Part 15 Class B, IP65 Certified Shock – 3×11 ms pulses of 50g on each of 3 axis
Key Switch
Material: Industrial Silicone Rubber
Life: Greater than 10 million cycles
Travel: 0.055″ Actuation
Force: 7.05 oz +/- 1.06 oz
Feedback: Tactile with Mechanical Snap
Vibration Power
Spectral Density: 0.04g/Hz
Frequency Range: 20 Hz – 2Khz
Duration of Test per Axis: 3 hours
Temperature Range
Storage: -40°F to +194°F
Operating: -40°F to +158°F
100 % Humidity Resistant

Notes
A $20 premium per keyboard must be added to the purchase price for non US English keyboard overlay language requirements
Check with your Customer Service Representative for alternative language overlay availability
Alternative language overlays may be subject to Minimum Order Quantities
Keyboards will ship with US English language overlays as standard unless alternative language overlays are clearly requested on the Purchase Order

Warranty
1 year warranty by iKey
