Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

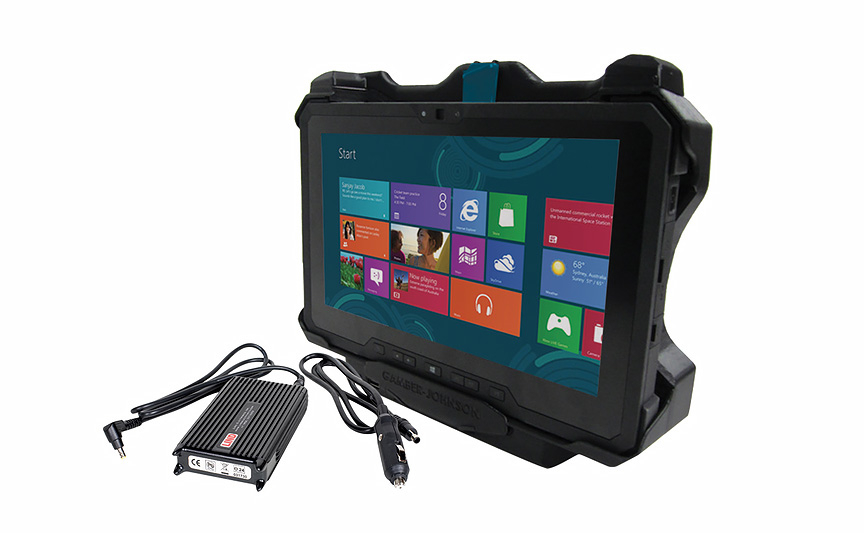

Gamber Johnson Kit: Dell Latitude 12 Rugged Tablet Docking Station with Lind 12-16V Auto Power Supply (Dual RF) 7170-0552-02
Compatible Dell models:
7202/7212
Port replication:
- WIFI & Cellular RF
- RS232 Serial
- VGA
- Power input
- Display
- USB 3.0
- Ethernet RJ45
Power supply included:
Weight:
Dimensions:
Width: 12.97″ / 32.9cm
Depth: 2.85″ / 7.2cm
Features:
- Comes with Lind automobile power supply (12-16 VDC input/20 VDC output).
- Cords connect on back of the dock and can be routed down the center or side.
- Complete access to ports and power supply input when the dock is mounted.
- Dual “Slam & Lock” technology for easy docking.
- Use the tablet stylus and card reader/scanner while the tablet is docked.
- The stylus cord, even when placed between the dock and tablet, won’t interfere with the tablet’s connectivity when docked.
- Guide walls on the bottom of the dock ensure proper connection when docking the tablet.
- VESA 75mm mounting pattern.
- Optional keyed lock for theft deterrence.
- Optional RF for WiFi and cellular.
- Additional USB 2.0 and mic/AUX ports on front of the dock.
- Steel and composite design for reduced weight.
- Rugged construction for long-term durability.
- 3 year limited warranty.
Certificates & Testing:
- ROHS, FCC, CE
- Vibration/shock testing: MIL-STD 810G
- SAE Standard J1455 crash test
