Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.
– 0.88 lbs. (Samsung Powered Docking Station)
– 2.20 lbs. (Flex Pedestal Mount)
– 6.76″ H x 8.86″ W x 1.18″ D (Samsung Powered Docking Station
– 25.43″ H x 2.5″ W x 4.5″ D (Flex Pedestal Mount)

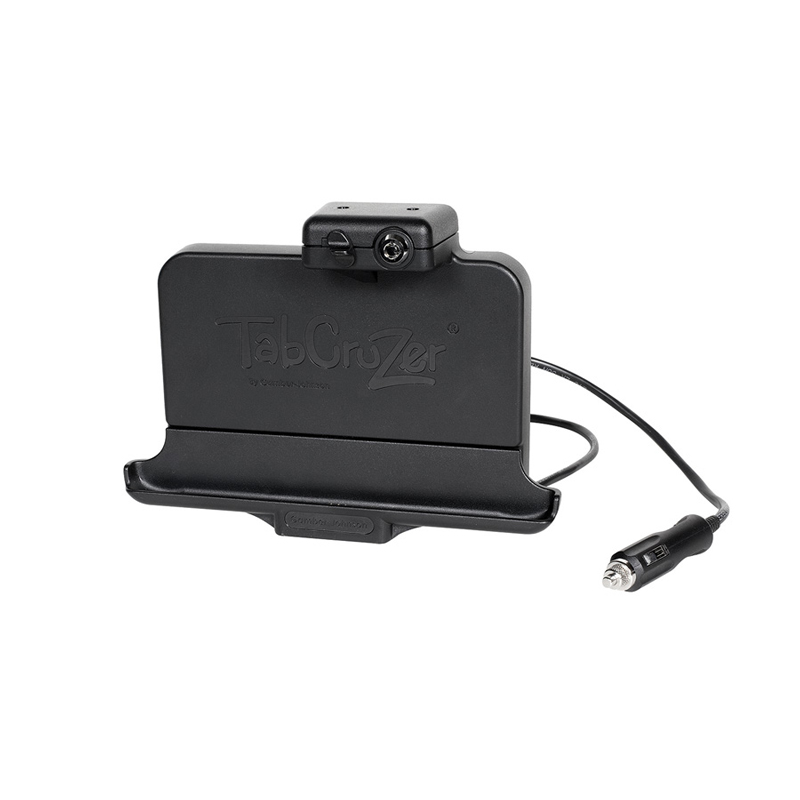

- Access to all control buttons, ports and the C-Pen stylus while the tablet is inserted
- Docking Station can be mounted using the VESA 75mm mounting hole pattern
- Docking Station can be mounted on a flat vertical surface
- POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked
- Convenient front support helps to align the tablet to ensure proper charging connectivity
- Push-button lock with key for theft deterrence
- Simple, one-handed docking operation:
- Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages – Samsung tablet is docked
- Push latch button up with your thumb then remove the tablet from the docking station

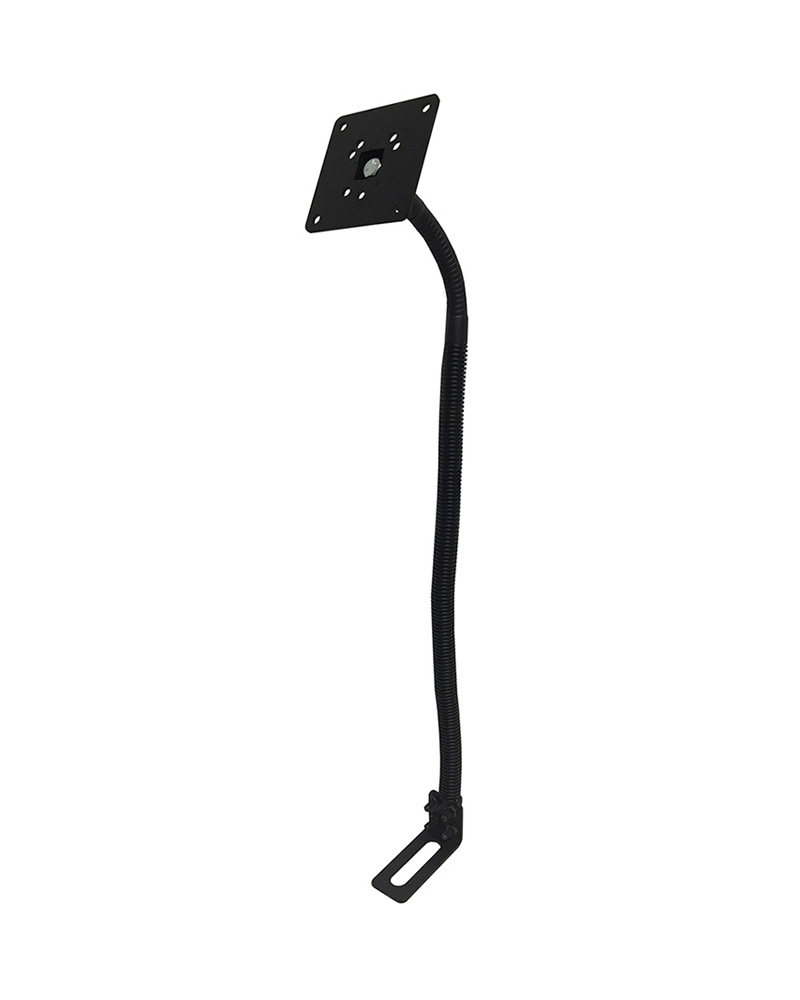

- Vehicle Base: Flexible Pedestal Mount (Item No. 7160-0756)
- Use the Flexible Pedestal Mount when you need a consumer grade mounting solution
- The Flexible Pedestal Mount attaches to the back of the TabCruzer and then directly to most vehicle seat studs without drilling into the vehicle
- 1 year limited warranty
- Vibration/Shock Testing: MIL-STD 810G
- RoHS, WEE, FCC, CE, E-Mark, TUV
- SAE Standard J1455 Crash Test
- EMI – Electromagnetic Interference
