Gamber Johnson Mounting and Docking Equipment

Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station.  Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile.  A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime.  The Rugged Store offers many mounting and docking solutions from some of the top manufacturers.  Gamber Johnson creates mounting and docking components for Toughbooks and other computers.  Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution.  The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

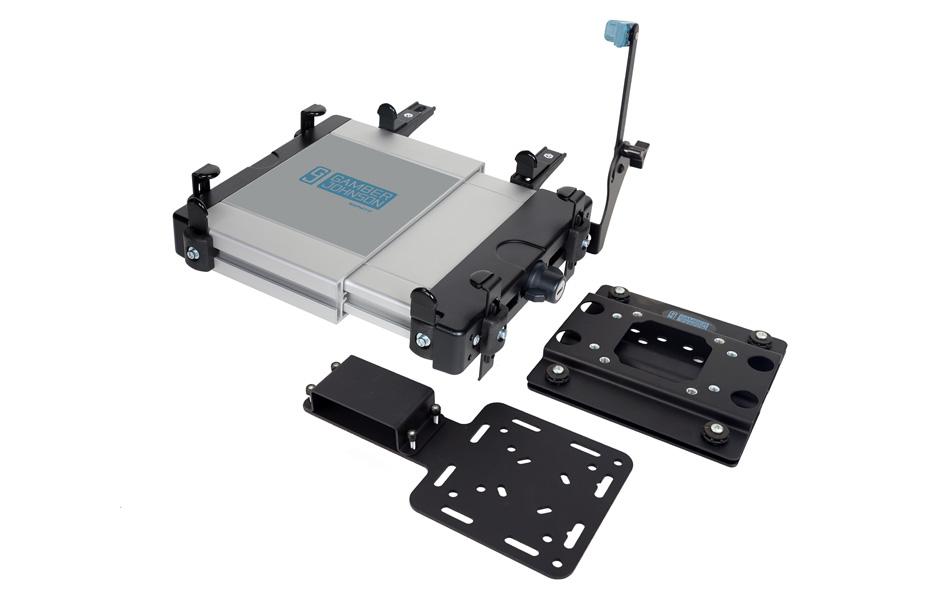

Gamber Johnson Notepad™ V-LT Universal Cradle Kit 7170-0907

Compatibility
DEPTH ADJUSTABLE:
Adjusts to computer depths from 7.58” – 9.33”.

THICKNESS ADJUSTABLE:
Adjusts to computer thickness (measured with screen open) from 0” – 1.5”

LIND power supply mount accommodates many LIND power adapter models

This Notepad V-LT kit includes the universal cradle, screen support, isolator plate, and power supply mount. Ready to attach to a Gamber-Johnson motion attachment to complete your vehicle solution.

Antenna Pass-Through
None

Port Replicator
None

Power Supply
Power supply must be purchased separately

Features
Notepad™ V Universal Cradle:
Cradle is extruded aluminum with adjustable height, width, and depth
Special “flanged” side clip design provides superior strength and can be easily adjusted
Sliding mounting bar on the bottom allows for multiple positions for offset capabilities when used with a the motion attachment
90 degrees wing turn closure latch allows for fast initial size adjustment allows for quick computer insertion and removal has built-in heavy duty key lock (keyed alike)

Screen Support:
Attaches to the back right corner of the cradle and can be positioned up to 40 degrees backward or 100 degrees forward
Shock/vibration Isolator Plate:
Positioned between any Motion Attachment and Gamber-Johnson Docking Station or Cradle
VESA 75mm and Gamber-Johnson 2″ x 4.09″ mounting hole patterns

LIND Power Supply Mount:
Attaches between the Docking Station/Cradle and Motion Attachment of any Gamber-Johnson Docking Station or Cradle with VESA or Gamber-Johnson hole pattern.
Accommodates many LIND power supply models

Certificates & Testing
Notepad™ V Cradle: 30 mph crash tested per SAE J1455 standard

Kit Includes
Notepad™ V-LT Universal Cradle
Notepad™ V Screen Support
Shock / vibration Isolator Plate
Power Supply Mount
Installation Guides
Mounting Hardware

Warranty
Limited Lifetime Warranty
