Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

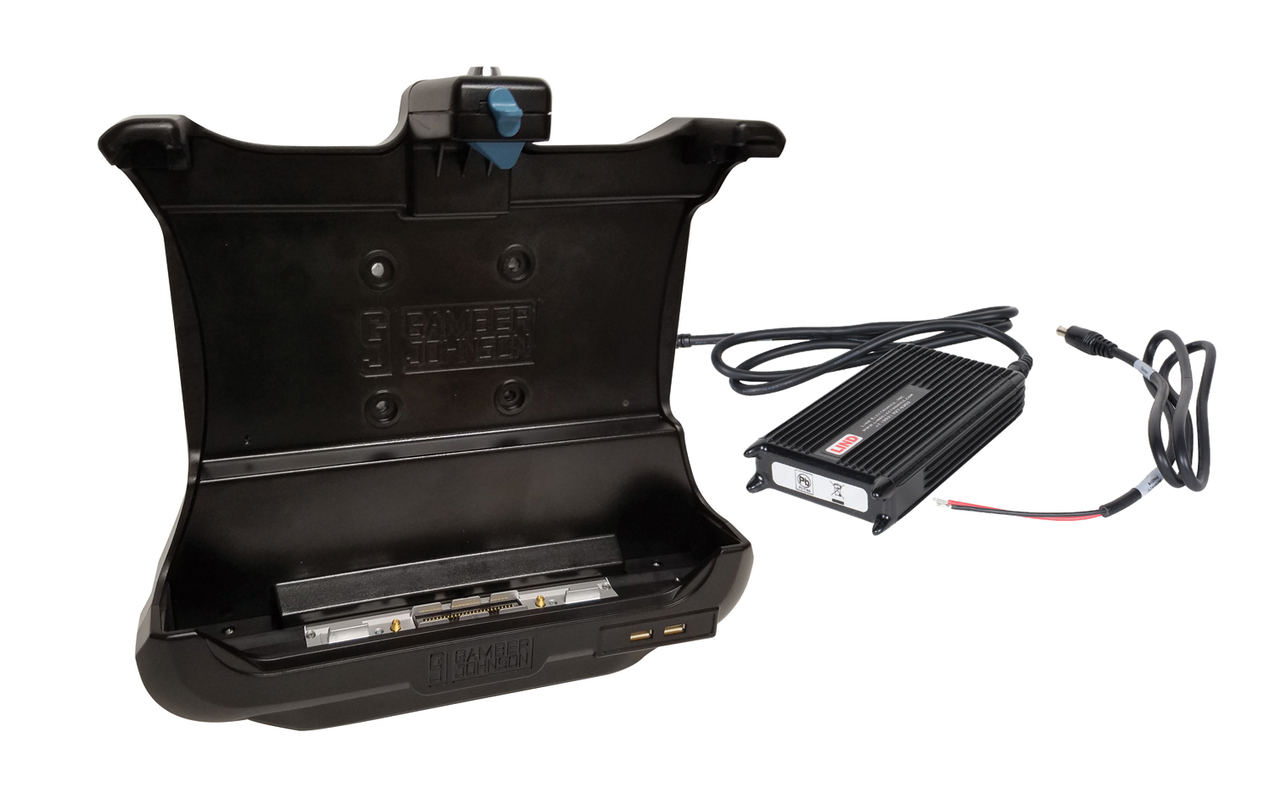

Gamber Johnson Panasonic CF-33 Tablet Docking Station (Dual RF, Lite Port Replication) with LIND 120V Auto Power Adapter 7170-0685-02
Gamber-Johnson CF-33 Tablet docking station Kit includes NO RF Lite port replication docking station and LIND 120V auto power adapter.
Antenna Pass-Through:
Dual RF (TNC)
Port Replicators:
USB 3.0 (2)USB 2.0 (2)USB 2.0 on front (2)Ethernet (2)Serial 9 PinExternal Antenna Select SwitchPower Input
Weight:
Dock: 4.15lbs. / 1.88kg
Power Adapter: 0.85lbs. / 0.39kg
Dimensions:
Width: 13.25″ / 33.65cm
Height: 12.5″ / 31.75cm
Depth: 4.5″ / 11/43cm
Features:
Compatible with the Panasonic CF-33 Toughpad
Kit includes (item no. 7160-0907-07) NO RF docking station + (item no. 14103) LIND 120V auto power adapter
Easy to use one-handed operation:
Insert bottom of computer into the docking station, push top of computer against latch button until latch engages
To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
Can be used in horizontal or vertical position
Floating docking connector for a reliable connection even in extreme environments
Accommodates either a tablet’s hand strap or an additional battery pack
Optional keyed lock for theft deterrance
Alignment tabs prevent damage to docking connector when docking the computer
Vesa 75mm mounting pattern
Rounded edges to enhance personal safety
Warranty:
3-Year Limited Warranty
