Gamber Johnson Mounting and Docking Equipment

Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station.  Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile.  A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime.  The Rugged Store offers many mounting and docking solutions from some of the top manufacturers.  Gamber Johnson creates mounting and docking components for Toughbooks and other computers.  Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution.  The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

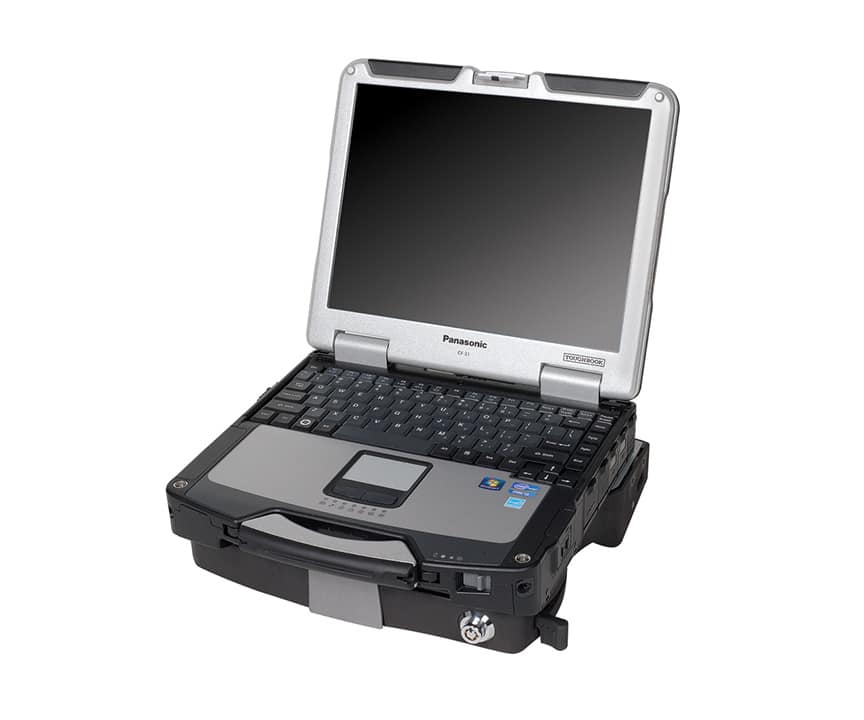

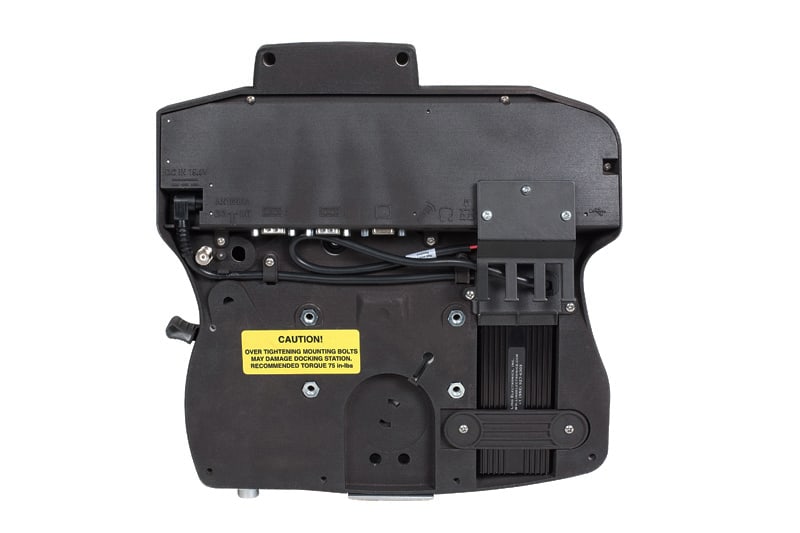

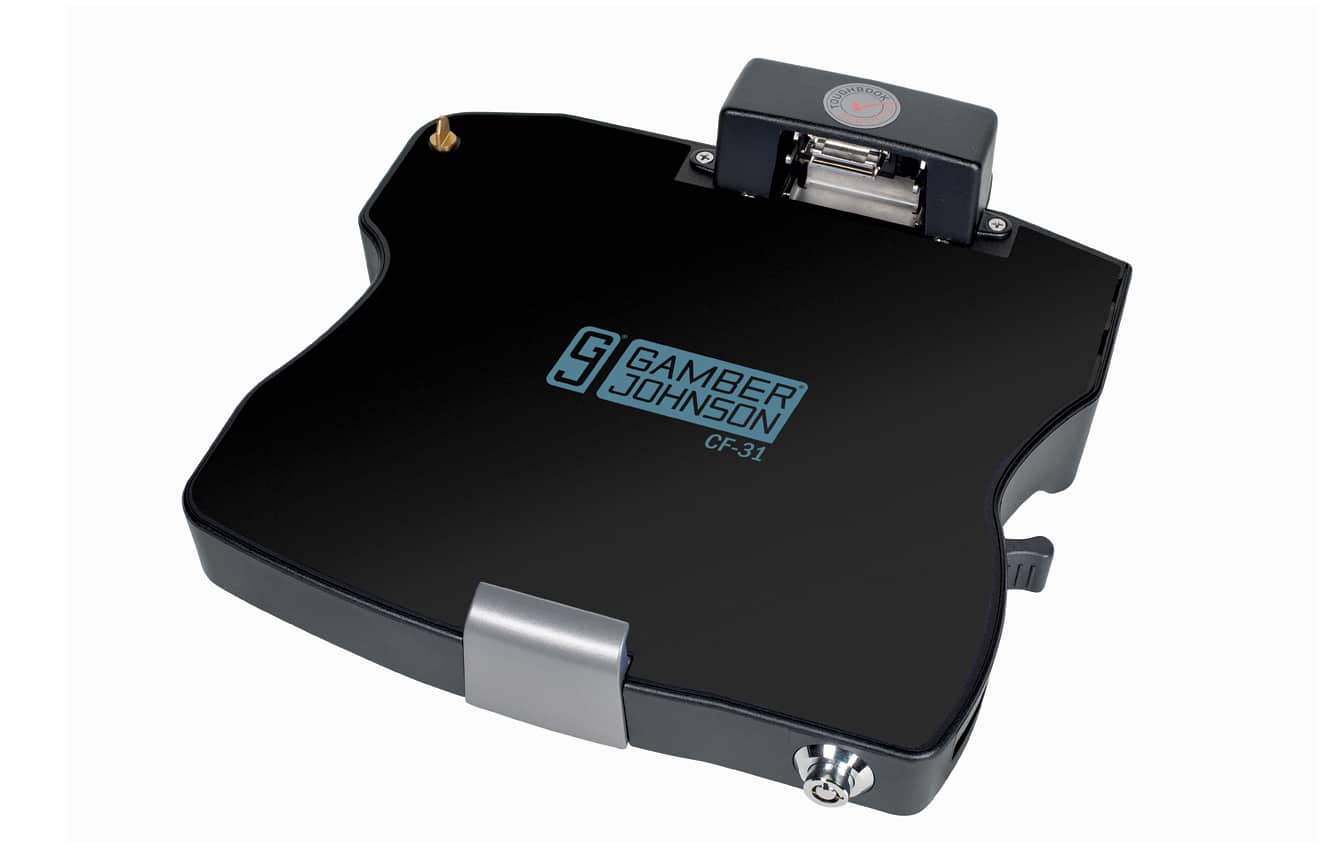

Gamber Johnson Panasonic Toughbook 30/31 Docking Station with Integrated Power Supply, Single RF, Automatic Lock 7160-0318-11

Locking Type:

Automatic Lock – automatically locks when the computer is docked. The lock must be unlocked with key to release the handle and undock the computer. Lock is keyed alike.

Weight:

5.50 lbs.

Dimensions:

3.90”H x 12.40”W x 12.30”D

Features:

• Compatible with Toughbook 30 & 31 computers
• Panasonic electronics
• Light-weight composite/Steel design
• Interlock mechanism protects against connector damage & prevents engagement until properly mounted
• Floating dock connector for easy docking activation
• Forward facing ports for low mounting capability
• Simple, one-handed, docking mechanism:
  • Pull side handle forward to dock
  • Unlock the key button to release and undock computer
• Side LED indicator light can be used to troubleshoot in the field:
  • Green: All ports are ready to use
  • Orange: USB and LAN ports not functioning or external power is not connected
  • Red: PC is not supported or connection is not made
  • Red (Blinking): Error has occurred in firmware, contact Panasonic Technical Support
  • Not Lit: PC not installed or PC is Off , Standby or Hibernation

Certificates & Testing:

• Panasonic Toughbook Certified
• MIL-STD 810G
  • Operational Vibration Method 514.6, Procedure 1
  • Non-operational Vibration Method 514.6, Category 24
  • Non-operational Vibration (Sinusoidal) – 10‐200Hz Sine Sweep
  • Non-operational Mechanical Shock safety Method 516.6, Procedure 1, 3 positive and 3 negative pulses each axis
  • Shock Crash Hazard – SAE J1455, 20G, 135 ms.
  • EMC Testing – EN 55022 (CISPR 22), EN 50498
• Cycle Testing Non-operational – 10,000 cycles of the docking connector, latching and locking mechanisms
• CE, FCC, RoHS compliant

Port Replicator:

• Serial (2) D-sub – 9 pin
• Single Antenna Pass-Through TNC
• Ethernet (2)
  • USB Ethernet RJ45
  • True Ethernet* RJ45
• USB 2.0 (5) – 4 pin
• External video D-sub – 15 pin
• Headphones/speakers Stereo phono jack
• Microphone Mono phono jack

Warranty:

• 3 year limited warranty (printed circuit board, docking connector)

• Limited lifetime warranty on all non-electronic components (sheet metal)

• Optional 4 and 5 year extended warranty available

Accessories:

• Integrated 120W LIND power supply kit (Item No. 7160-0496). Upgrade non-powered docks.
• External 120W LIND power supply (Item No. 14103)
• Lind low-profile adjustable shutdown timer (Item No. 13792)
• Screen Support (Item No. 7160-0501)
• LED light assembly (Item No. 7160-0096)
• Trunk shelf mounting plate (Item No. 7160-0398)
