Description
Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

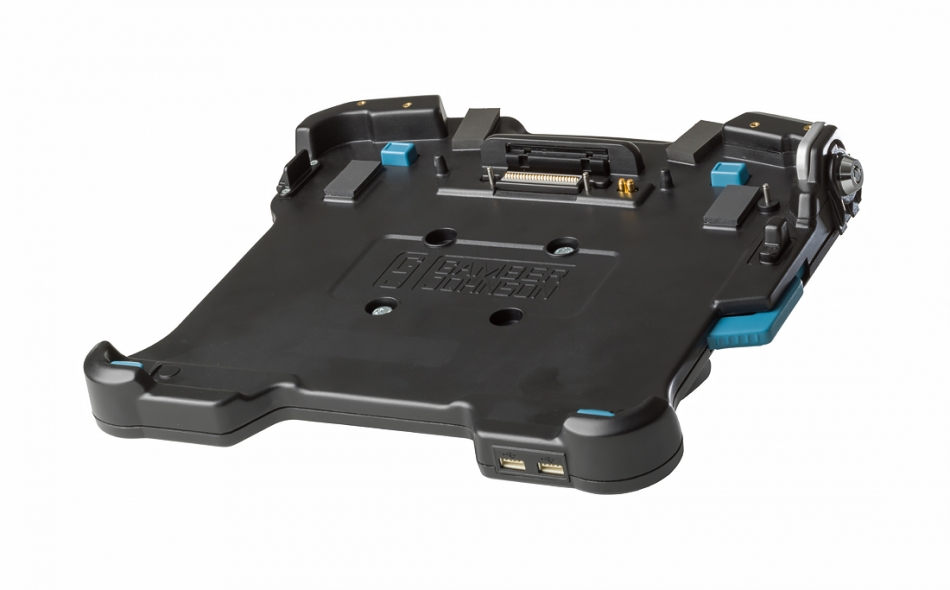

Gamber Johnson Panasonic Toughbook 33 Laptop Docking Station, Lite Port, Dual RF 7160-0909-07
If your Toughbook 33 has the premium keyboard, this is the docking station you need. Whether you use your computer in laptop or tablet orientation, the docking station will hold your computer and keyboard securely in a vehicle. The docking station comes with lite port replication including serial 9 pin, and plenty of USB ports.
Antenna Pass-Through
Dual RF (TNC)
Port Replicator
Antenna switch
LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin
Power Supply
Power adapter is not included, please use one of the following:
LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power with cigarette lighter connector (7300-0462)
Features
Compatible only with the Panasonic Toughbook 33 that comes with the premium keyboard option
Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin.
Floating docking connector with alignment tabs – perfectly align the computer with the docking station for a reliable docking connection
VESA 75mm hole pattern
Internal/protected circuit board protects against dirt and dust
Lock (keyed alike) for theft deterrence. When locked, neither the tablet nor the laptop can be removed from the docking station
Rounded edges to enhance personal safety
Rugged construction for long-term durability
Can be used with Lind 120W automobile power supply (Item No. 7300-0462) or Lind 120 W bare wire leads power supply (Item No. 7300-0461)
Testing & Certificates
The docking station is designed and tested to rugged environmental standards. It’s Toughbook Certified, and has passed MIL-STD- 810G shock/vibration, RoHS, FCC, and CE testing.
Kit Includes
Panasonic Toughbook 20 Docking Station
Mounting Hardware
LIND 11-16V Auto Power Adapter
Installation Instructions
Warranty
3-Year Limited Warranty
Explore our extended warranty program
