Description

Gamber Johnson Mounting and Docking Equipment

Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station.  Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile.  A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime.  The Rugged Store offers many mounting and docking solutions from some of the top manufacturers.  Gamber Johnson creates mounting and docking components for Toughbooks and other computers.  Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution.  The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

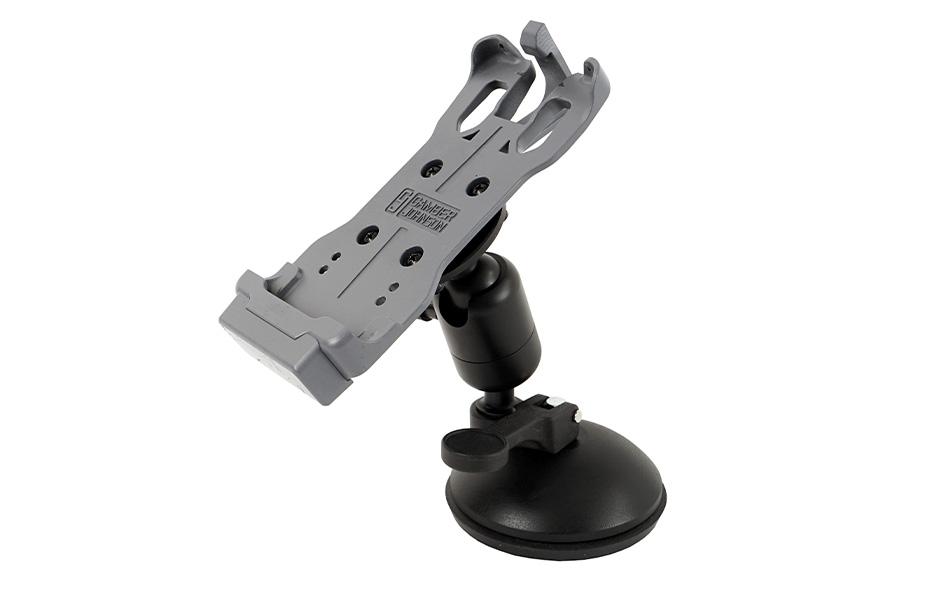

Gamber Johnson Samsung XCover 5 Charging Cradle with Zirkona Suction Cup Mount 7170-0910

Bundle your Samsung Galaxy XCover 5 Charging Cradle with the Zirkona Small Suction Cup and Zirkona Medium 2-Down Joiner with Brake for an ergonomic solution.

Features
Designed for the Samsung Galaxy XCover 5 smartphone without accessories
10-40V power input range to support a wide range of mobile applications
Cradle allows access to all control buttons and camera while docked
Charging Cradle design is compatible with Samsung’s built-in barcode scanner using the onboard camera and long and short-range RFID reading capabilities which are optimized for fast, accurate data transmission
Dock and undock with simple, one-handed operation:
Insert the bottom of the smartphone into the cradle, rotate the phone back, pressing until the latch snaps over the top of the phone
To remove, press up on the release button until the latch clears the top of the phone, rotate the phone forward and pull it away from the cradle
POGO pin connector and internal power supply provides fast-charge to the Samsung phone while docked
Features an integrated cigarette lighter adapter
Dock features an AMPS mounting pattern which is Zirkona compatible
The included Zirkona suction cup mount is a strong but temporary solution with no drilling required
Medium two-down joiner holds up to 6 lbs making it suitable for a wide array of devices in a single mount
Suction Cup features strong suction with newly redesigned material ensuring a stable and reliable base

Certificates & Testing
Charging Cradle:
MIL-STD 810G Shake/Vibration
SAE J1455 Crash Tested

Kit Includes
Zirkona Medium 2-Down Joiner with Brake (7110-1259)
Samsung Galaxy XCover 5 Charging Cradle with Cigarette Lighter Connector (7160-1625-20)
Small Zirkona Suction Cup (19753)
Zirkona Round Plate – Device or Base Plate (14144)

Warranty
1 Year Limited Warranty – charging cradle and Zirkona mount
