Description
Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.
Gamber Johnson Zebra ET5X 10″ 2-in-1 Attachable Keyboard 7160-1585-00
Gamber-Johnson’s attachable keyboard for the Zebra ET5X Series 10″ enterprise rugged tablet is the perfect solution for the mobile worker. Install the tablet in seconds to add the functionality of a keyboard with a smooth responsive feel with features you are familiar with. The USB port can be used to attach a flash drive or another peripheral and the keyboard’s hard carry handle makes it easy to carry your tablet/keyboard combo anywhere.
Antenna Pass-Through
None
Port Replicator
(1) USB 2.0 (2) (500mA)
Power Supply
Charge the tablet directly from the tablet’s USB-C port, the tablet provides power to the keyboard
Features
Designed for the Zebra ET5X 10” Series Enterprise tablet without rugged frame (Windows or Android compatible)
Integrated center touchpad with right and left mouse buttons
76-key keyboard with 12 function keys for custom operation
Silicone rubber keys with white lettering and a rugged polycarbonate case

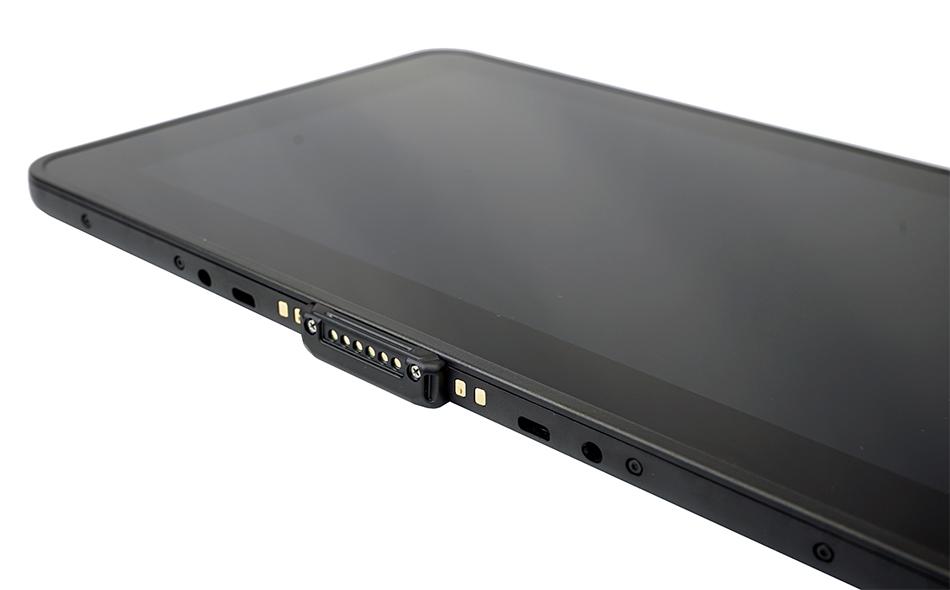

Easy to install – POGO docking connector links the tablet to the keyboard

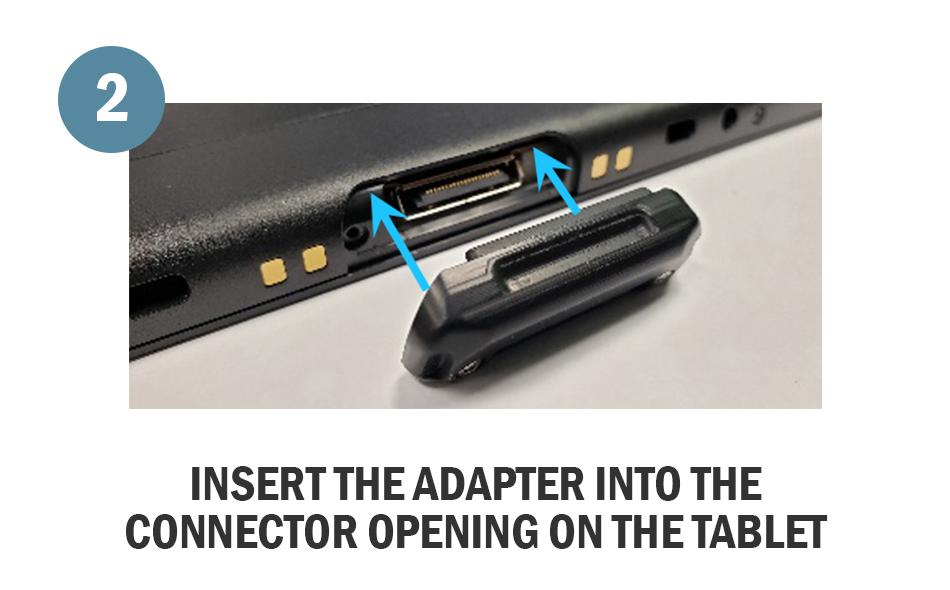

Easily connect the tablet to the keyboard; snap the pogo connector onto the tablet, slip the bottom of the tablet into the case and snap the top of the case over the tablet
USB 2.0 port (500mA) to attach a mouse, another peripheral, or flash drive
Charge the tablet directly from the tablet’s USB-C port
All computer features including camera, microphone, speakers, USB-C port and all control buttons are accessible when the tablet is docked onto the keyboard
Friction hinge and screen footrest with rubber feet help position the tablet at a comfortable viewing angle
Hard carry handle with two attachment rings for shoulder strap enhance portability
Low-profile ergonomic design for ease of use in a mobile environment
Available in US English (7160-1585-00), UK (7160-1585-01), German (7160-1585-02), French (7160-1585-03), Spanish (7160-1585-04), 7160-11585-05 (French CA), and 7160-1585-06 (Thai).
Contact Gamber-Johnson for other language options.
Specifications
USB-A (2.0) Port: 5V @ 500mA
Tablet input power: 5.4V, 1.5A
Temperature range:
OPERATING: -20°C to 50°C
STORAGE: -40°C to 85°C
IP54 ingress specifications: Keyboard
IP65 ingress specifications: Connector Adapter
Drop Test:
1 meter (39.4”) to concrete: Tablet and Connector Adapter
0.61 meter (24”) to wood: Tablet with Keyboard System
MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (Operational: -20°C to 50°C/Storage: -40°C to 85°C)
Cycle Tested: 3K Cycles – Insertions, 30K Cycles – Hinge Mechanism
Key Cycle Test – 2 Million Press Cycles
Key Surface Chemical Resistance
Certificates
Zebra Certified
ROHS, REACH, FCC, CE, C-TICK, UKCA
EN/IEC/UL 62368
Kit Includes
Zebra ET5X 10″ 2in1 Attachable Keyboard (7160-1585-00)
Quick Guide
Warranty
1-Year Limited Warranty
