Description
Gamber Johnson Mounting and Docking Equipment
Panasonic Toughbooks and Toughpads are only one aspect of the mobile work station. Highly mobile job codes such as public safety, warehouse management, refinery upkeep etc. require a work station that is just as mobile. A Toughbook or Toughpad mounted and docked in a vehicle can provide convenience as well as mobility thereby increasing productivity and decreasing downtime. The Rugged Store offers many mounting and docking solutions from some of the top manufacturers. Gamber Johnson creates mounting and docking components for Toughbooks and other computers. Offering quality built parts with excellent customer support, Gamber Johnson has thousands of different products purpose built to provide the perfect mounting solution. The Rugged Store offers the full Gamber Johnson catalogue; the Gamber Johnson parts team is constantly innovating and expanding their mounting and docking product line, so if you don’t see the part you need listed please be sure to contact us so we can help you find it.

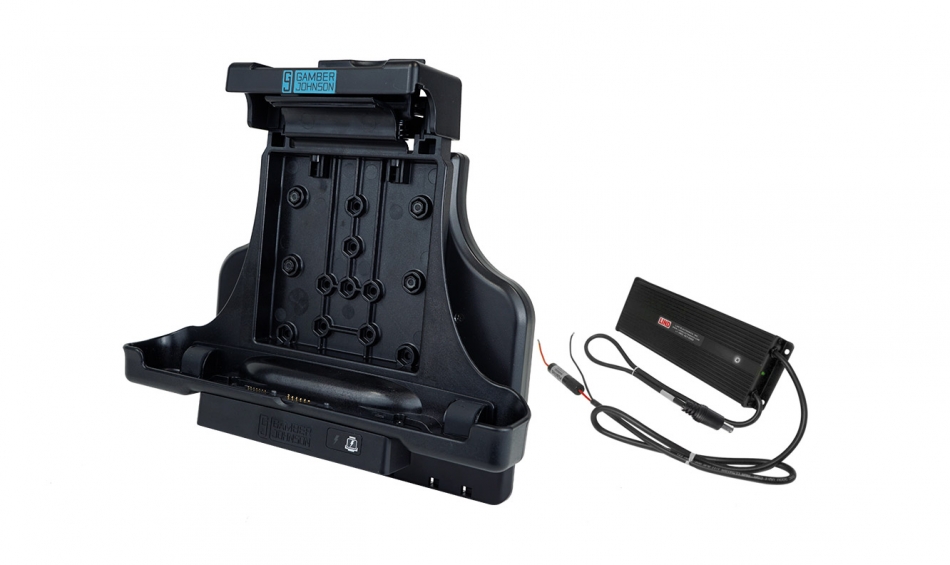

Gamber Johnson Zebra L10 Android Tablet Vehicle Docking Station (No RF) with LIND 72-110V Material Handling Isolated Power Adapter 7170-0807
This Zebra tablet vehicle docking station for the Zebra L10 xPad or xSlate tablet provides full port replication with powered RS232, and a keyed lock for security. Connect the docking station to the LIND power adapter included in this kit.
Antenna Pass-Through
None
Port Replicator
USB 2.0 (2) – 9 pin (900mA)
USB 2.0 (2) – 4 pin (500 mA)
USB 2.0 (1) – 4 pin (500mA) behind internal access door
RS232 Serial (1) – Power on pin 9 (825mA)
Microphone
Headphones / Speakers
Power Input 19Vdc
Features
Compatible with the Zebra L10 ANDROID xPad and xSlate tablets
Kit includes ZEBRA L10 ANDROID Tablet vehicle docking station NO RF (7160-1453-00) and Lind 72-110V Isolated Power Adapter (7300-0346)
Docking Station design accommodates the L10 Smart Card/CAC Reader module, True Serial (RS232) module, Hard handle, Soft handle, and Shoulder Strap.
Sealed docking connector to protect against moisture
RS232 power on pin 9 (825mA)
LED indicator lights show when “tablet is docked” and “dock is powered”
Access door to internal USB 2.0 port provides additional security
Floating docking connector for reliable docking activation
Bottom-facing I/O ports; integrated cable restraint/cable management system
Forward facing docking latch/release for easy one handed operation
Insert bottom of computer into docking station, push top of computer in and pull latch forward until latch engages
To remove, lift latch to disengage and pull computer out of docking station
Keyed alike lock for security and theft deterrence
VESA 75mm and 50 x 100mm mounting patterns
Rounded edges to enhance personal safety
Composite/aluminum design for reduced weight and durability
Warranty
3-Year Limited Warranty
Explore our extended warranty program
