Description
Havis Mounting and Docking Equipment
A Panasonic Toughbook or Toughpad can be complemented and turned into a mobile work space with the proper mounting and docking equipment. The Rugged Store is pleased to be partnered with some of the best mounting and docking manufacturers in the business. One of the best known manufacturers and producers of high quality products is Havis. Havis has been creating mounting and docking for Panasonic Toughbooks and Toughpads for many years. The Rugged Store has access to the complete Havis catalog of equipment, if you can’t find the right part to building your Havis equipment solution, be sure to contact us so we can help you find it.

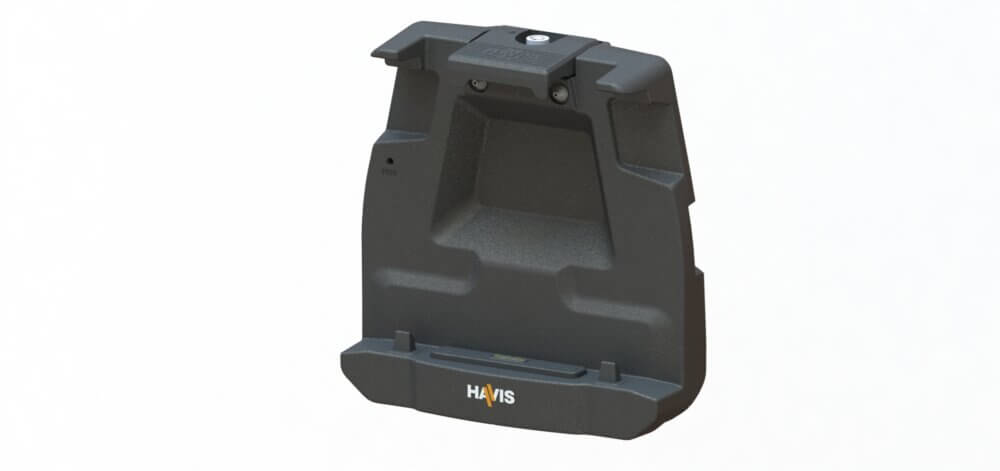

Havis Docking Station For Dell’s 7230 Tablet With Advanced Port Replication And Internal, Non-Isolated Power Supply DS-DELL-902
FEATURES
Supports Dell’s 12” Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
Side-mounted USB3.0 port
LED power indicator
One-handed docking & undocking
Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
Internal, non-isolated power supply (9-36V)
Provides access to all buttons, ports, and bar code scanner when tablet is docked
Compatible with Dell 7230 tablet accessories including hard and soft handles, magnetic mount, rotating hand strap and shoulder strap
Compact & lightweight
Integrated cable management system
Integrated VESA 75 mounting pattern
Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
Rounded edges and corners for comfort and safety
Keyed lock for added security
Made in USA
SPECIFICATIONS
PRODUCT SPECIFICATIONS:
(1) RJ45 Ethernet, (3) USB3.0 Type A, (1) USB-C, (1) DB9 Serial – 5V powered, (1) HDMI, (1) DC In port,
Dimensions: Height 10.2” (259mm) latched, 10.7” (272mm) unlatched; Width 10” (254mm); Depth 3.5” (89mm)
Product weight: 2.75 lbs (1.25kg)
Gross weight: 4 lbs
